Eastern Bikes Element
Details

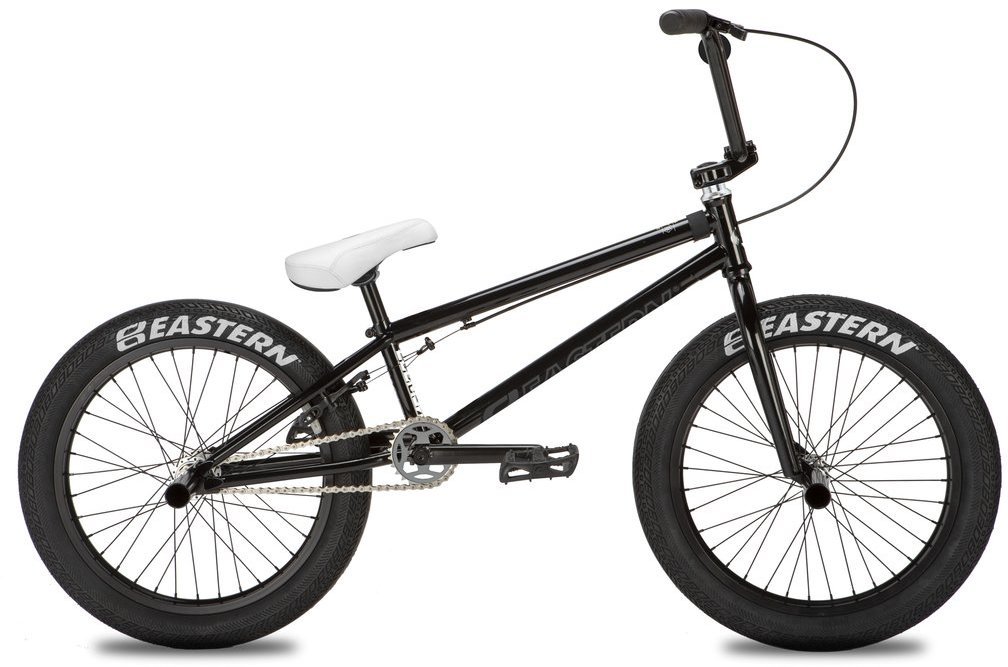

The expert level Eastern Element is a classic and is now built with a low-slung, full Chromoly frame, plus a full Chromoly fork, sealed bearing integrated headset, sealed hubs, 3-piece chromo cranks, double-wall rims, and our Squealer tires.
Specs
| Frame | Full Chromoly, Mid BB, Internal Headset 20.75" TT, Removable Brake Mounts |
|---|---|
| Fork | Full Chromoly, Tapered Legs, 28mm rake |
| Headset | Integrated 45°x45° Sealed Cartridge Bearing |
| Axles |
Front: 3/8" Chromoly Rear: 14mm Chromoly |
| Rims/Wheels | Alloy, Double Wall, 36 Spokes |
| Hubs |
Front: Loose Ball, Forged Alloy Shell, Drilled for 36 Spokes, Female Axle System Rear: Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle |
| Spokes | 14 Gauge with Brass Nipples |
| Tires | Eastern Squealer 20 x 2.40" |
| Crankset | 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 165mm 31.8mm Square Tapered Arm |
| Chainrings | Eastern Phorcys, Alloy, 25T |
| Bottom Bracket | Mid Sealed Bearing |
| Chain | KMC Z510 1/2 x 1/8 |
| Freewheel | 9 Tooth Driver with Hub |
| Handlebars | Hi-Tensile Steel, 8.75" Rise |
| Tape/Grips | Eastern Riblet Grips |
| Stem | Forged Alloy Top Load Stem |
| Brake Levers | Rear: Forged Alloy Lever |
| Brakes | Rear: U-Brake, Forged Alloy, Wide Body, grey Brake Pads |
| Pedals | Eastern Facet Pedal with 9/16" Chromoly Axle |
| Saddle | Medium Width Pivotal Seat |
| Seat Post | Pivotal, Alloy, 200mm |
| Accessories & Extras | Cold Steel Pegs (2pcs) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Black / 20-inch | 696836891105 | 00-201280 | 210000008344 |
| Gloss White / 20-inch | 696836891112 | 00-201281 | 210000008290 |
