Eastern Bikes Javelin

Eastern Bikes Javelin
  • Color | Size: Black | 20-inch
  • Color | Size: Hot Blue | 20-inch
  • Color | Size: Neon Yellow | 20-inch
  • Color | Size: Orange | 20-inch
  • Color | Size: Tan/Camo | 20-inch
Color: Orange
Size: 20-inch
Please select options Unavailable

Details

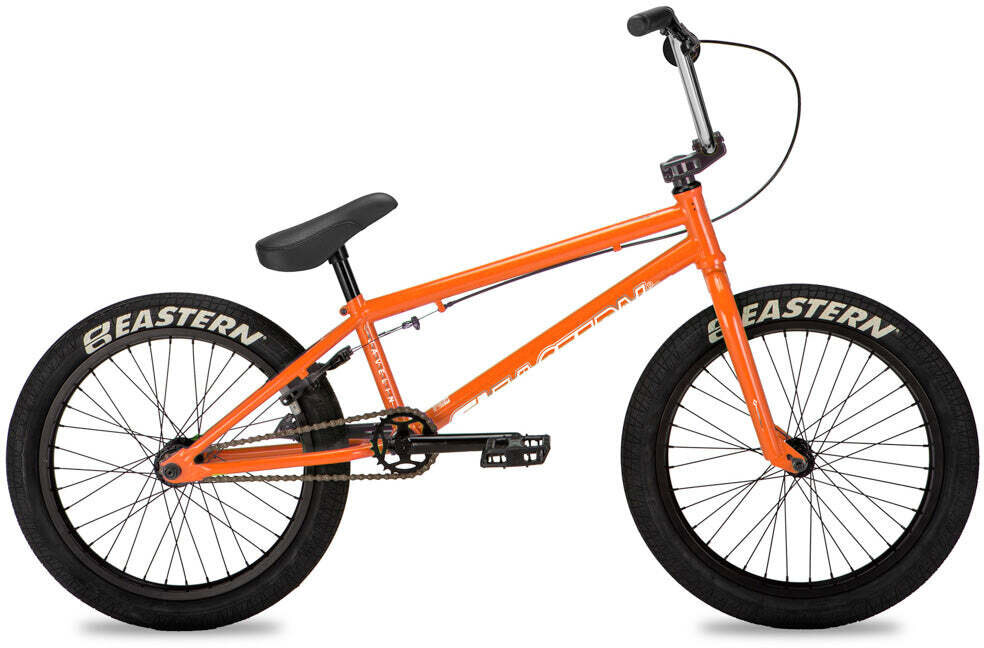

The eastern javelin is a beginners bike with a little extra. The javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, eastern grips, pedals, and sprocket.

Geo Chart

Geometry Chart:
Size20-inch
Top Tube Length (IN) 20.5
Chain Stay Length (IN) 13.38
Sizes:
SizeHeight (inches)
20-inch 5’0” - 5’8”

Specs

Frame Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
Fork Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Rims Alloy, Double Wall, Drilled for 36 Spokes
Hubs Front: Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
Rear: Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
Spokes 14 Gauge with Brass Nipples
Tires Eastern OEM 20 x 2.40
Bottom Bracket Sealed Bearing Mid
Crankset 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
Chainrings Eastern Phorcys, Cold Hard Steel, 25T
Cassette/Freewheel 9 Tooth Driver with Hub
Chain KMC Z510 1/2 x 1/8
Brakes U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
Brake Levers Forged Alloy Lever
Handlebars Hi-Ten 8.5" Upsweep/Backsweep 12°/1°
Tape/Grips Eastern Riblet Grips
Stem Forged Alloy Top Load Stem
Headset Integrated 45°X45° Sealed Cartridge Bearing
Seatpost Comes with seat
Saddle Medium Width Seat/ Post Combo
Pedals Eastern Atom Plastic Pedal with 9/16" Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Orange / 20-inch 696836891914 00-201213 210000007686
